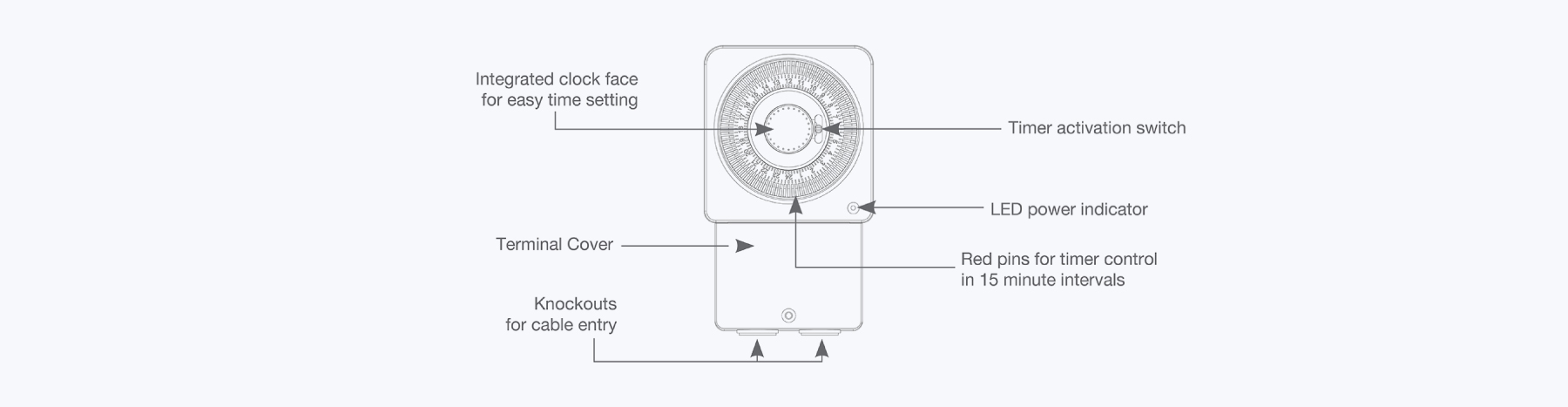

Step-01: Push down the red segments on the timer face corresponding to the operating time needed. One segment is equal to 15 minutes.

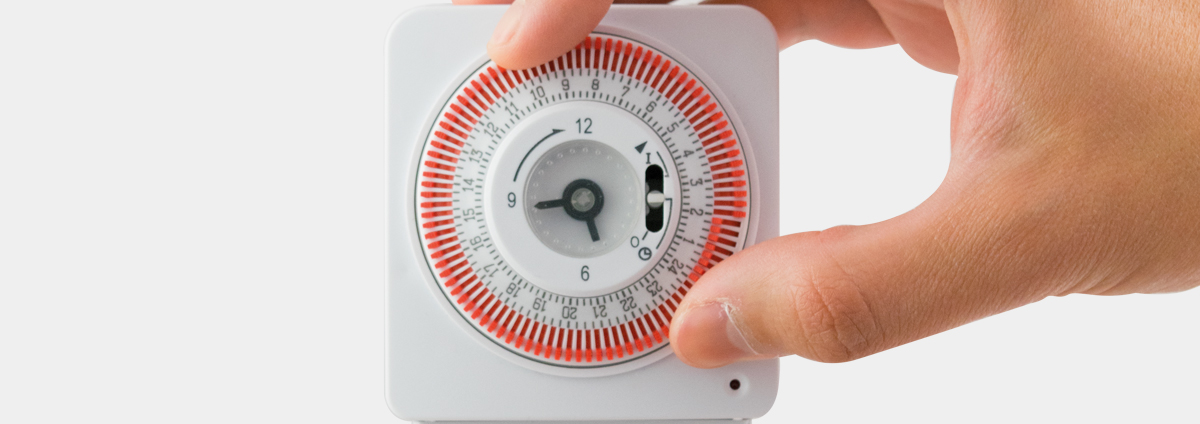

Step-02: Turn the central clock face so that it is the current time, or rotate the outer disk clockwise so that the solid black arrow points to the current time.

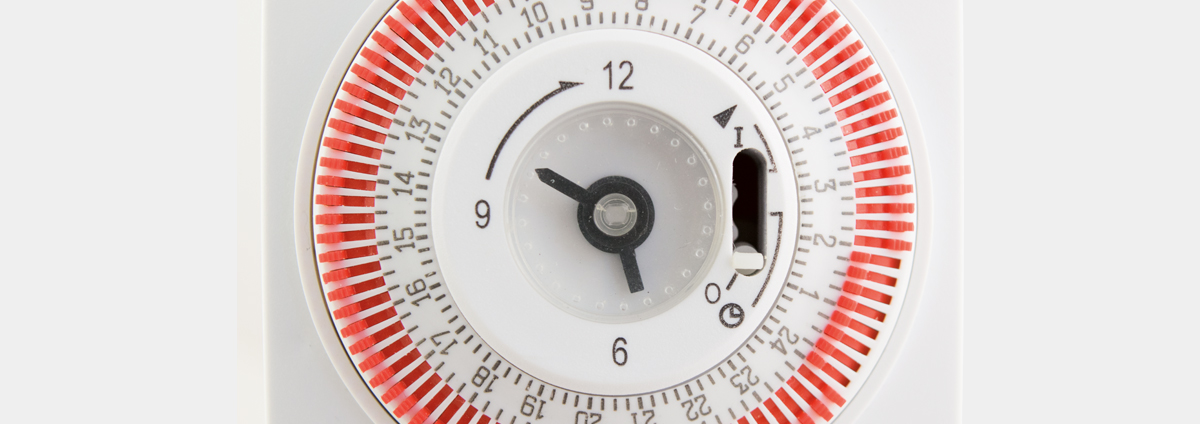

Step-03: To activate the timer function, ensure that the switch on the front face is down.

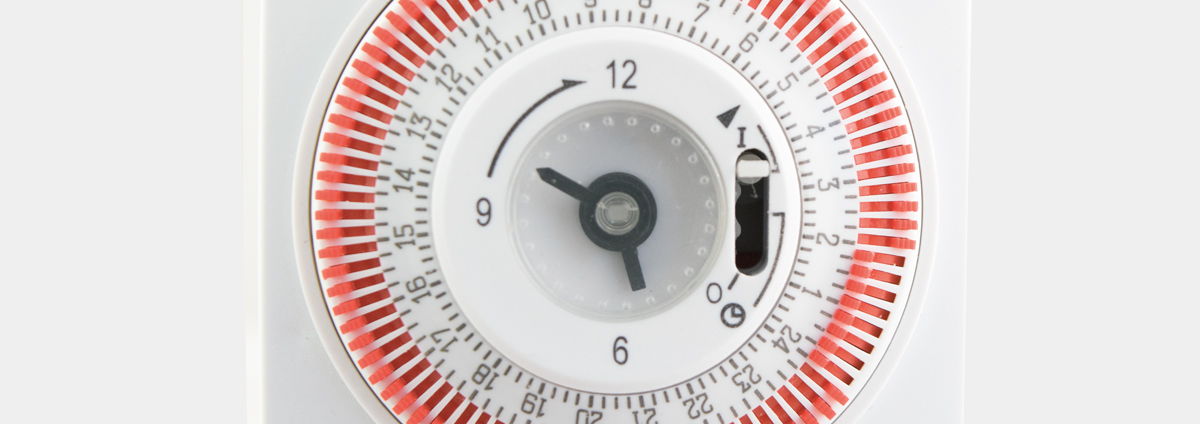

Step-04: For manual override, to switch on the heater, move the switch to the up position so that it indicates the ON symbol (I).

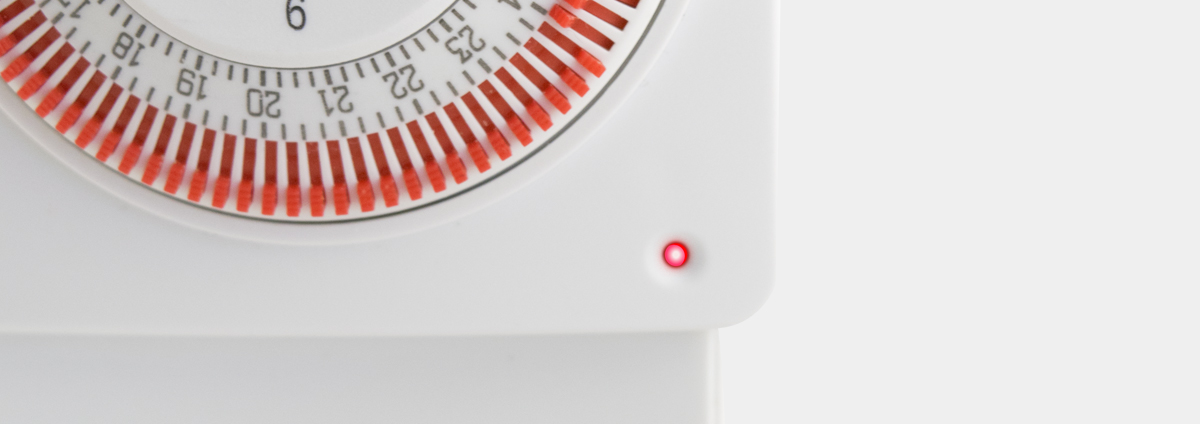

Step-05: UThe LED indicator will illuminate to show that the power is being supplied to the connected equipment.
Safety Instructions
- DO install in accordance with local building regulations

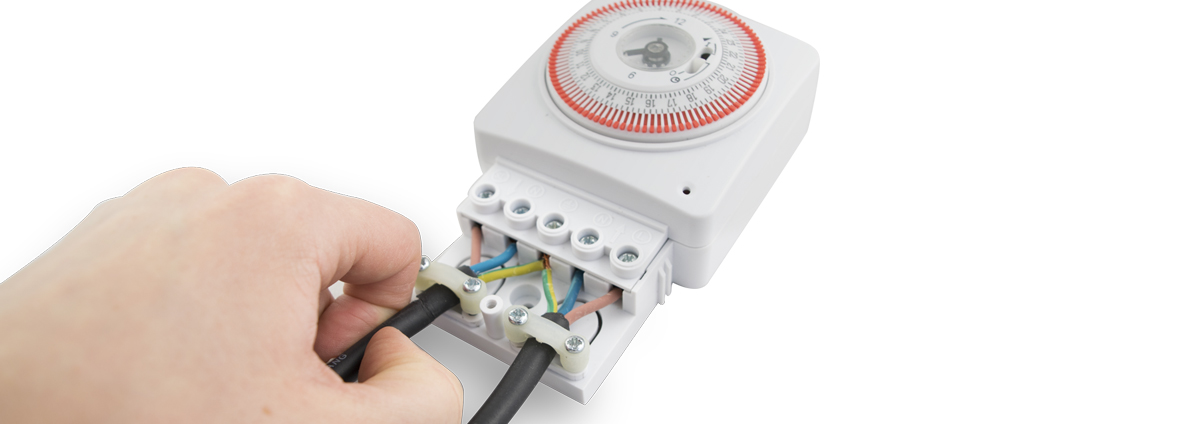

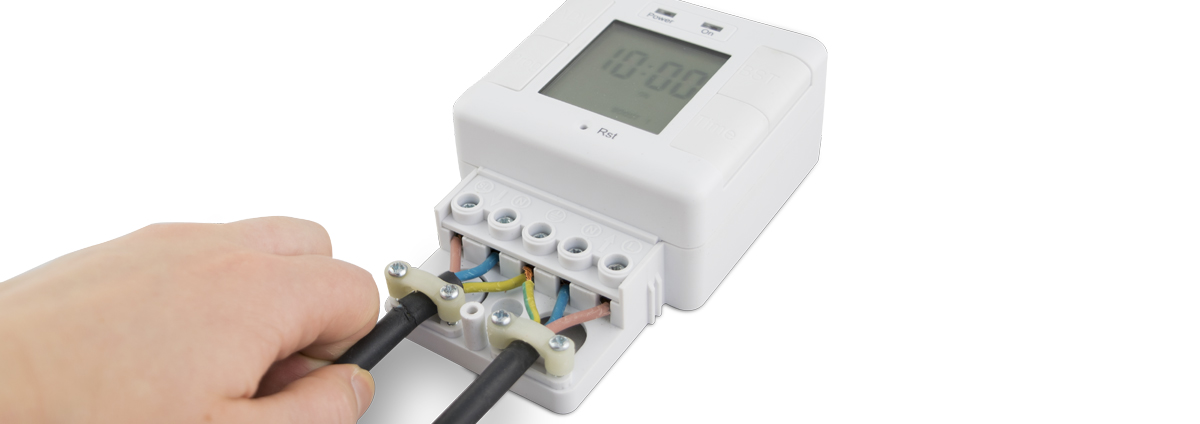

- DO use in accordance with the wiring instructions
- DO use cable of correct rating, size and type, to prevent fire hazard
- DO NOT exceed maximum load of 3840 Watts, 16(2)A
- DO NOT immerse in water. If cleaning is required, wipe with a dry cloth
- DO NOT use if damaged
- DO NOT use outdoors
If in doubt consult a competent electrician
Environmental Protection
This symbol is known as the ‘Crossed-out Wheelie Bin Symbol’. When this symbol is marked on a product or battery. It means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment. Only dispose of electrical/electronic/battery items in seperate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.
