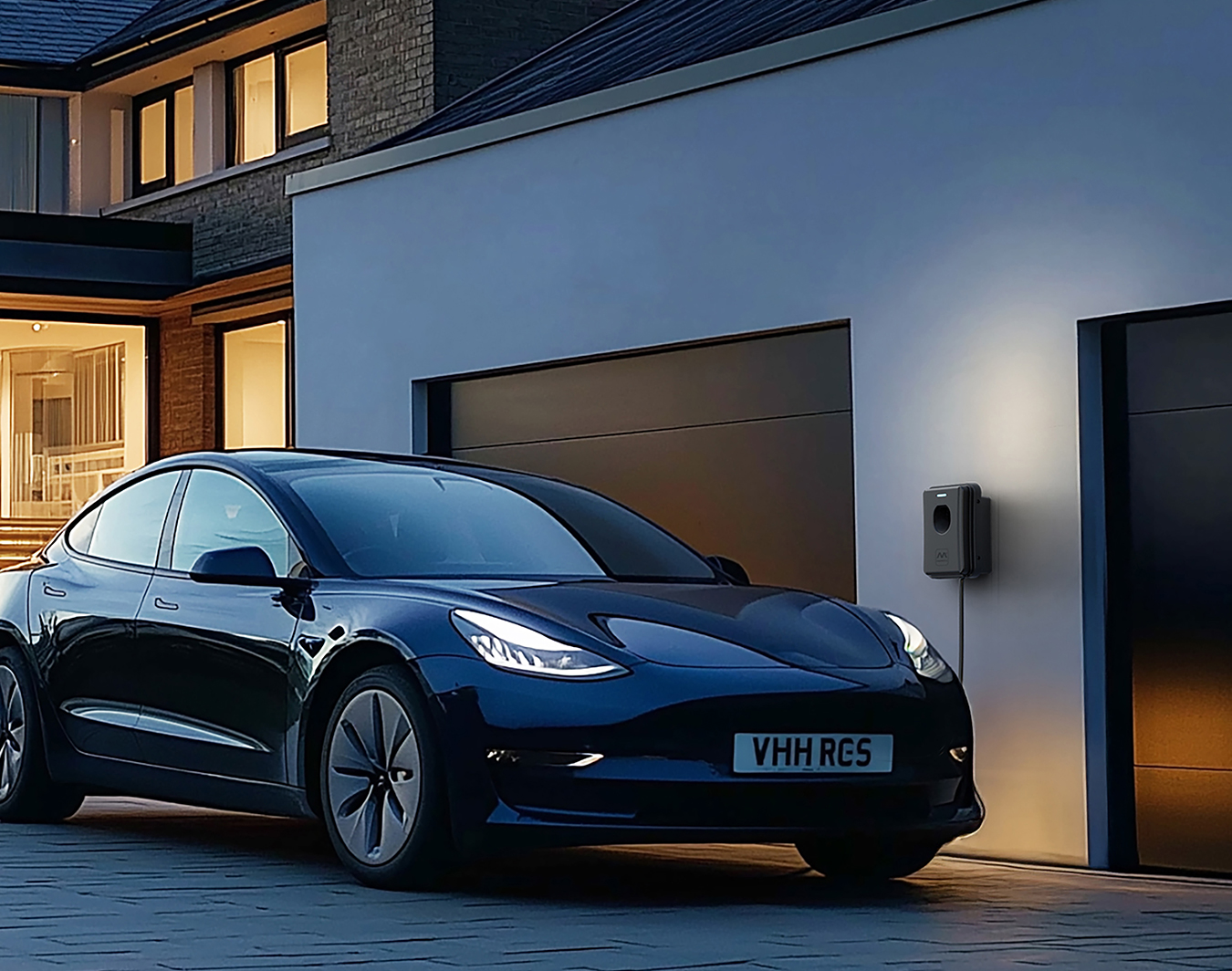

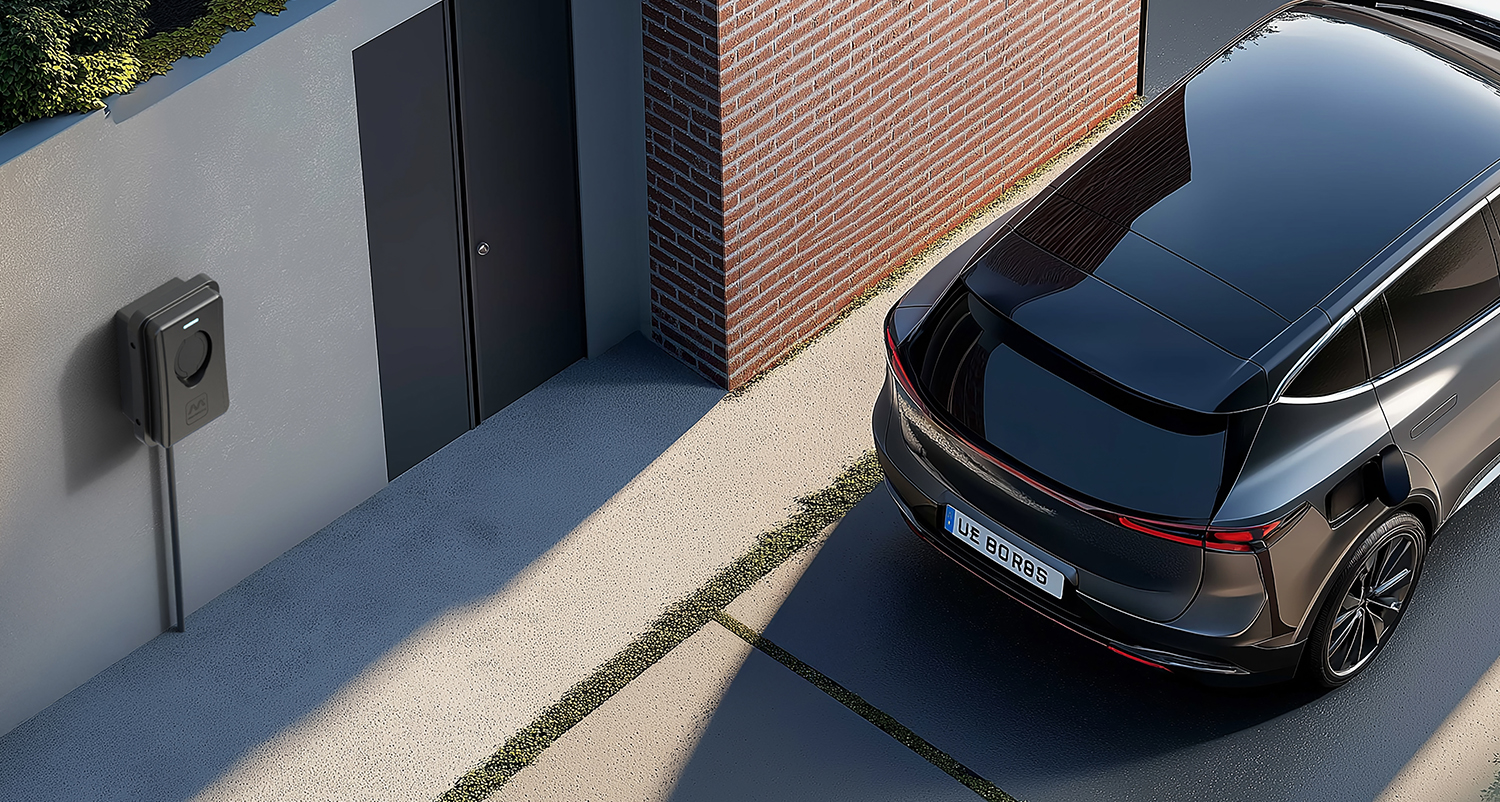

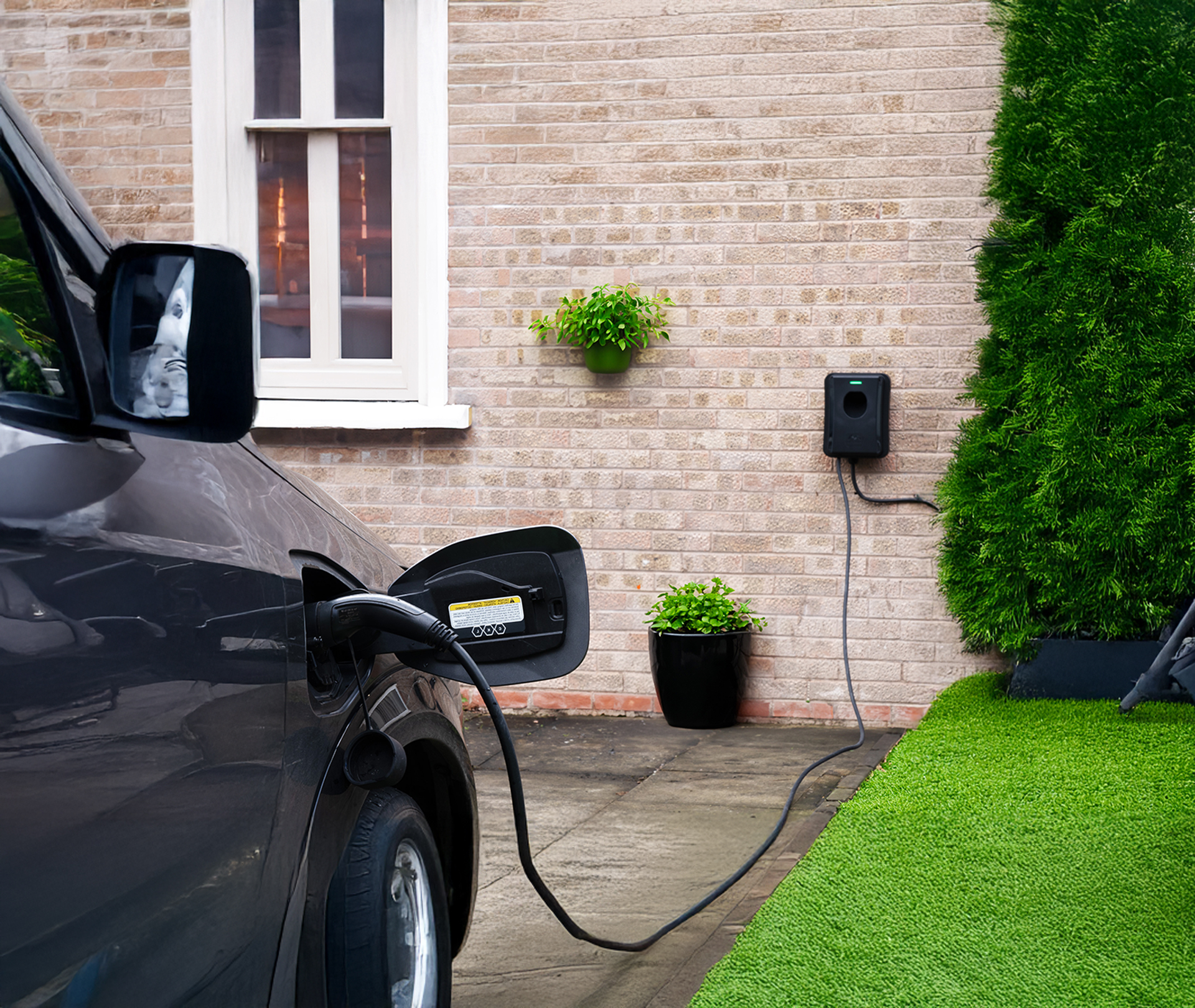

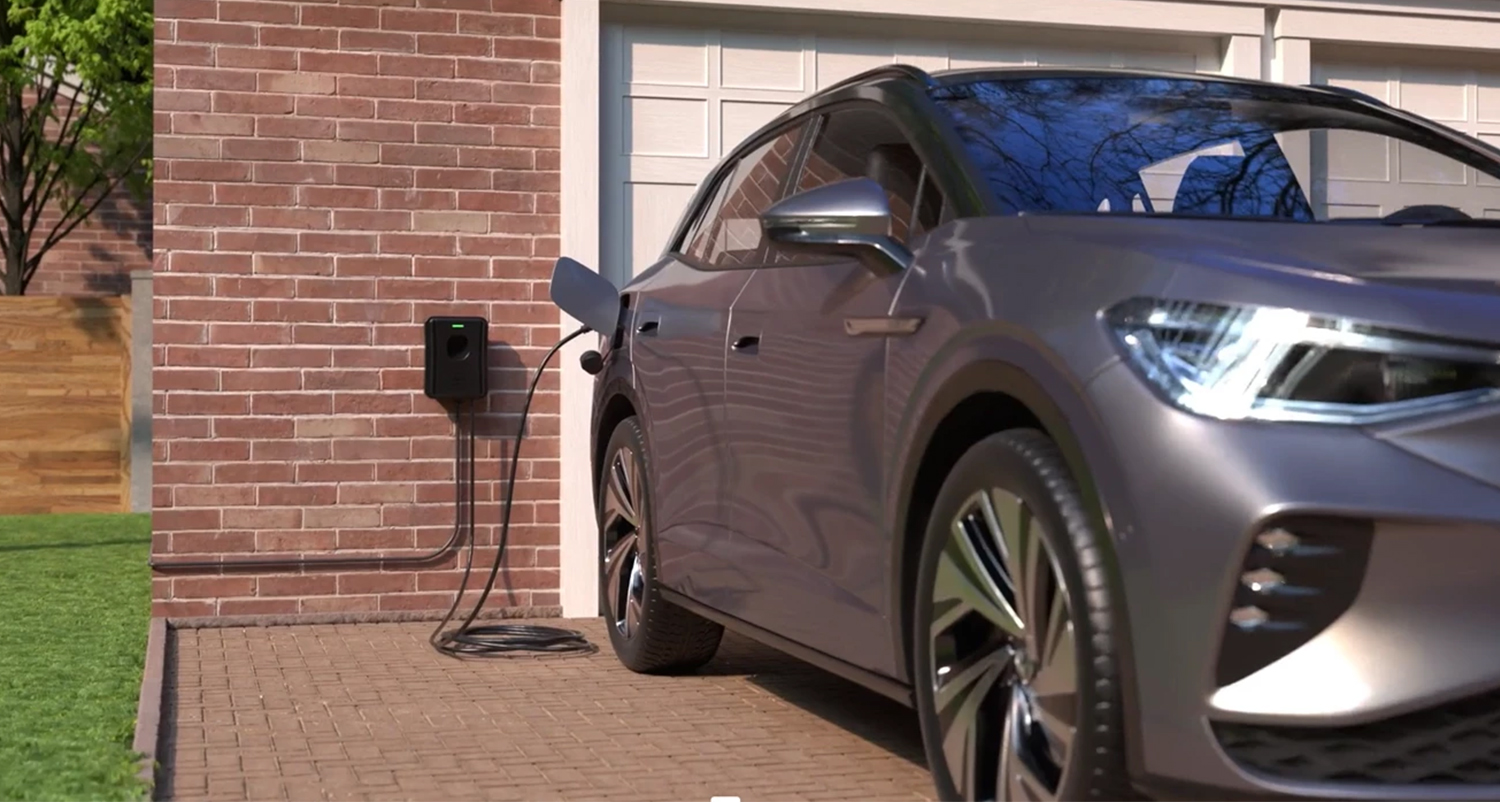

Efficient, reliable EV wall charger for convenient home use.
The Masterplug EV Wall Charger offers fast and secure charging for electric vehicles. Designed for easy installation, it includes safety features and smart technology to enhance user experience. Ideal for homeowners seeking a dependable and efficient charging solution for their electric cars.

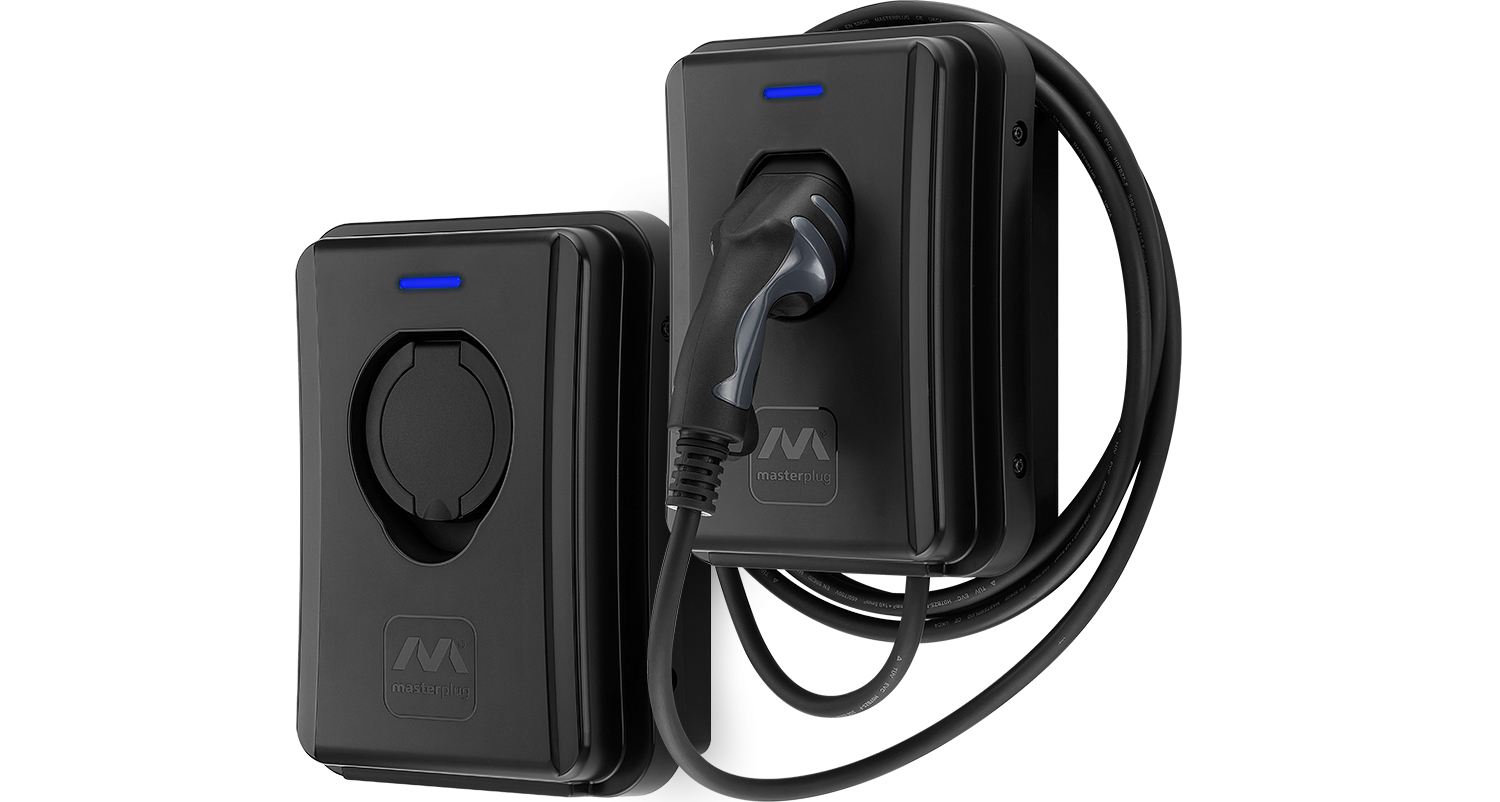

2 Models Available

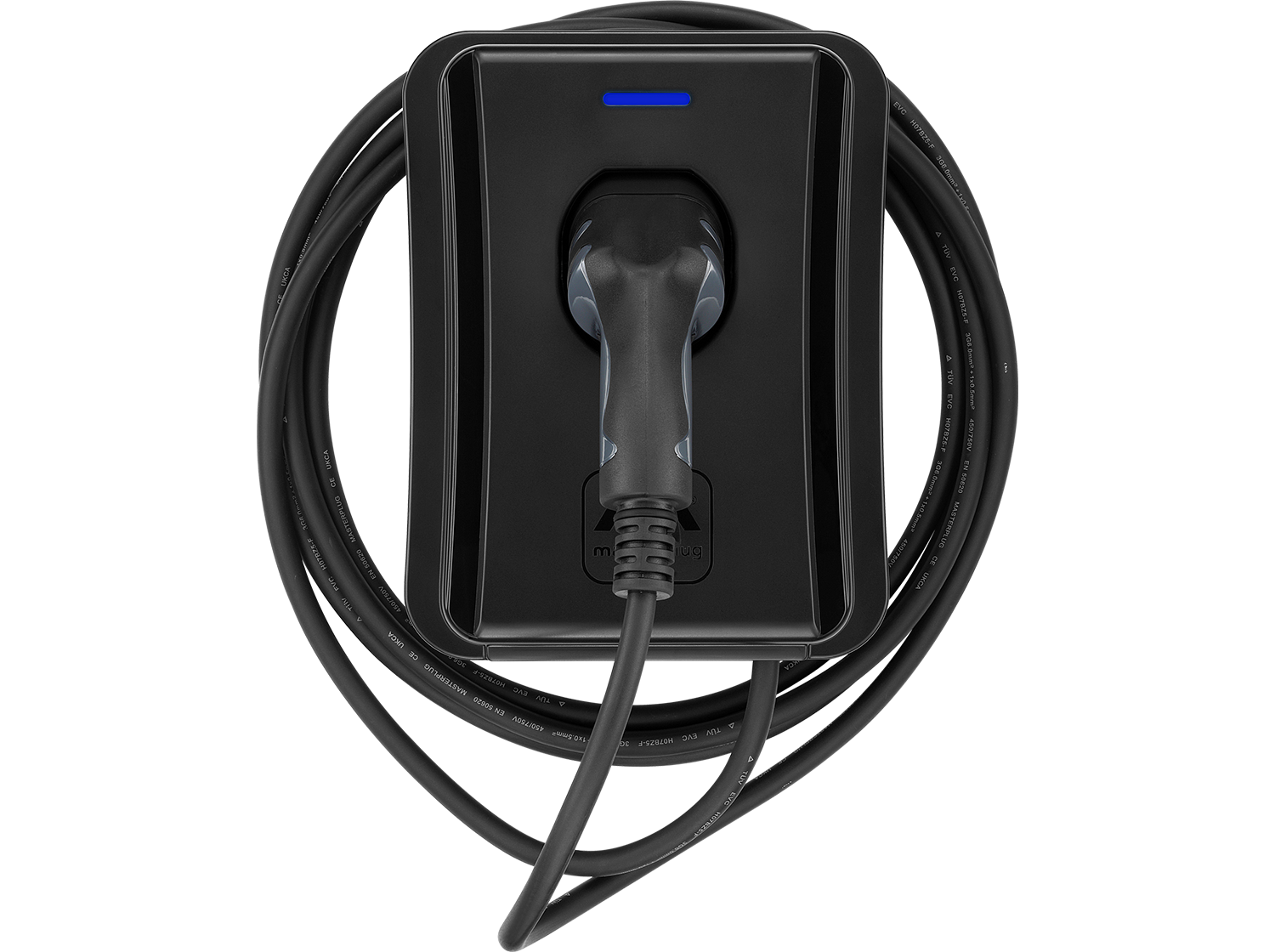

Socket and 5m tethered options.
Quick and Easy Installation
With UK-based technical suport.
Compatibility
Compatible with all electric and hybrid plug-in vehicles.
3-Year Warranty
Fully compliant with UK EV regulations.
Save Money and Charge Smart
with Masterplug Mode 3 Chargers
Masterplug's Mode 3 chargers are compatible with all electric and plug-in hybrid vehicles, boasting a host of standard smart features. They are meticulously designed to reduce installation costs while maximising savings. With solar charging capabilities and scheduled charging, harness the full potential of your home energy.

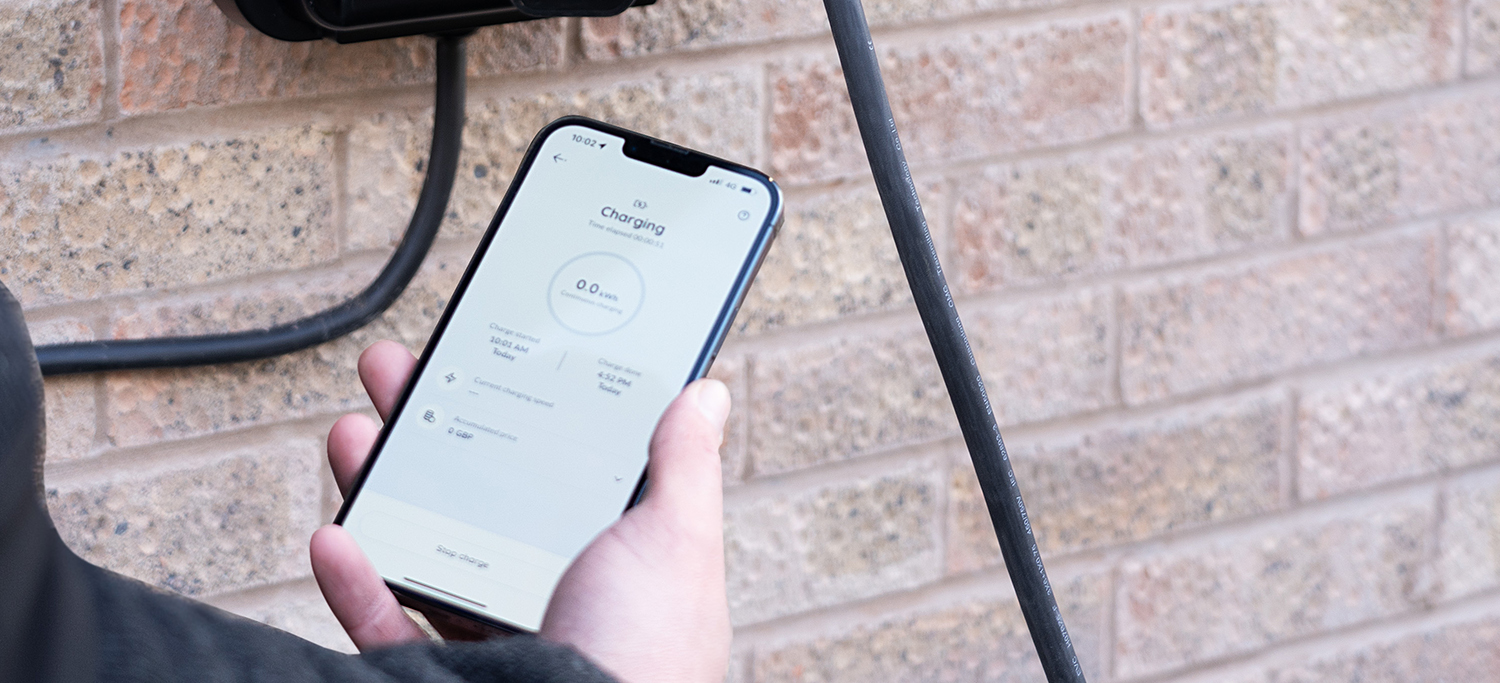

Utilising the MONTA user app, these chargers grant users access not only to their home charge point but also to over 300 THOUSAND public chargers, all through one convenient app.
Safe and Easy Installation
Each charger comes with built in 30mA Type A + 6mA DC RCD Protection, along with PEN Fault detection technology, meaning depending on wiring method’s all you need is a 40a MCB to protect the installation cable, with NO requirement for earth rods!
Accompanied with a dedicated Bluetooth installer app for set up and commissioning “Masterplug EV Charging” getting the charger commissioned and online is as easy as 1,2,3.
1 – Install the EV Charger*
2 – Commission the EV Charger
3 – Control the EV Charger with Monta
Always consult a qualified electrician before carrying out any installation works*

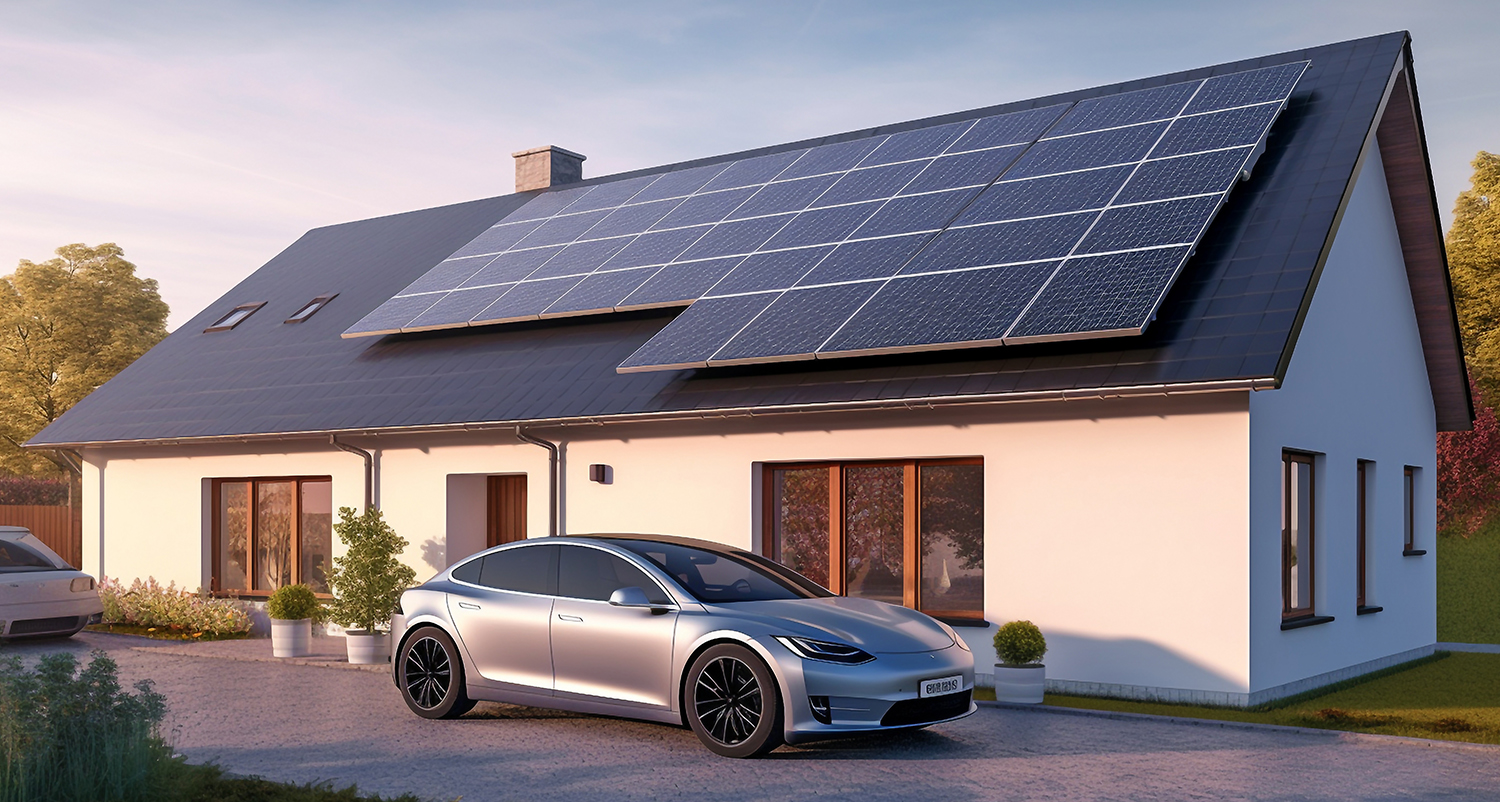

Power Your Drive with Solar
Integrated SolarCharge enables you to charge from your solar panels, leveraging your surplus green energy whilst also reducing charge costs. Compatible with any solar panel hardware, it sets up in 5 minutes, and is completely free to use.
✔ Charging at no cost.
Homeowners can maximise the use of their existing solar panels to cut down on EV charging expenses at home.
✔ Zero modifications to existing solar setup.
Any solar panel, inverter, and battery can be used with integrated SolarCharge. The CT Clamp must be fitted correctly during the installation.
✔ Easy setup guaranteed.
No complex hardware integrations, new EV chargers with special sensors, or additional software tools are necessary - only the Monta app is needed.
Empowering Your Journey
Built with integral safety features such as a 30mA Type A RCD, 6mA DC protection, and PEN Fault protection, these chargers prioritise both intelligence and safety. Fully compliant with UK EV Smart Charging Regulations, they offer peace of mind. Additionally, rest assured with a 3-year warranty and UK-based technical support for added confidence.
For any and all technical support queries please get in contact
email - technical.support@masterplug.com
or phone - 03300 249 279, followed by, Option 4
Access Thousands of Public Chargers
with a single app
We understand that charging on the road can be concerning for users, that’s why with the Monta user app you have access to thousands of public charge points across the UK and Europe.
Compatible with all electric and hybrid plug-in vehicles
Support
Range Features
| S7 Socket Product Code | EVCM3SS7B |
| T7 5M Tethered Product Code | EVCM3ST7B |
| SOCKET / PLUG : | Type 2 Connector |
| Charge current : | Configurable 6-32A |
| Input Voltage : | 220-240V, 50-60Hz Single Phase |
| Colour : | Black (RAL9005) |
| IP / IK Rating : | IP55 / IK08 |
| Material : | UV resistant polycarbonate |
| Wall Fixing : | 4 Point fixing with horizontal and vertical adjustment. Supplied with fixing hole template. Fixing Centres - 110mm X 145mm |
| Cable management : | Integrated cable storage |
| Operating Temp : | -25°C to + 50°C, Integrated thermal protection |
| Included Accessories : | Load Management Clamp, 1X25mm compression Gland, 1X25mm blind grommet, anti-tamper driver bit, Power connectors and 5X base fixing washers |
Network and Connectivity
| Wi-Fi : | 2.4Ghz 802.11 B/G/N |
| Wi-Fi Security : | WPA/WPA2/WPA2-Enterprise |
| Ethernet : | RJ45, Supports DHCP and manual Static IP address |
| Connection Protocol : | OCPP 1.6J |
| Bluetooth : | Easy Set up via Bluetooth installer App, 4.2BR/EDR and BLE |
| App : | Powered By Monta User App |
Electrical and Safety
| Pen Protection : | Yes, Integrated Earth Disconnection |
| Earth Rod : | Not Required, supports TT, TN C-S, PME |
| RCD protection : | Yes, Integrated 6mA DC and 30mA AC Type A |
| Electrical Class : | Class 1, with Class 2 housing for PEN fault protection |
| Load Management : | supplied with Load management clamp, supports upto 120A circuits |
| Meter Accuracy : | 2% Class C equivalent internal meter, supports external RS485 Modbus Meter |
| Consumer unit requirements : | 40A MCB or 30MA Type A RCBO (dependent on cable type and/or route) |
| Terminals : | Combi screw first fix power plug |
| Indicator : | RBG LED and Buzzer |
| Blue - Standby | |
| Flashing Blue - Preparing | |
| Green - Charging | |
| Flashing Green - Charge Finished | |
| Yellow - No Network | |
| Red - Error | |
| Warranty : | 3 Year Standard Warranty |
| Standards and Approvals : | IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, THE ELECTRIC VEHICLES (SMART CHARGE POINTS) REGULATIONS 2021 INCLUDING SCHEDULE 1 |
